6V-10M-R6
12-port multibeam antenna, 12x 1695–2690 MHz, 6x 10-14° HPBW
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, total | 12 |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 900 mm | 35.433 in |
| Net Weight, antenna only | 43.8 kg | 96.562 lb |

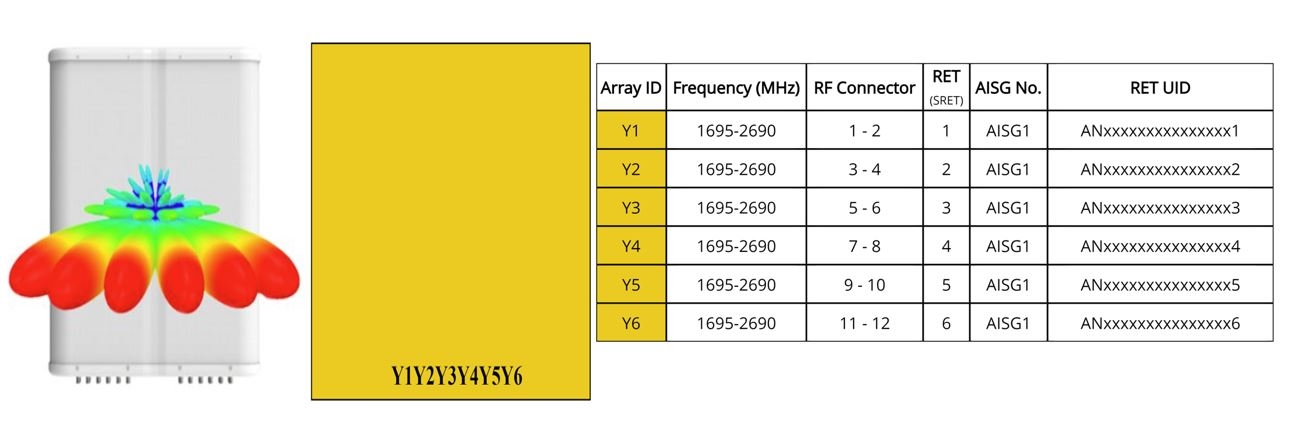

Array layout
| Click on image to enlarge. |

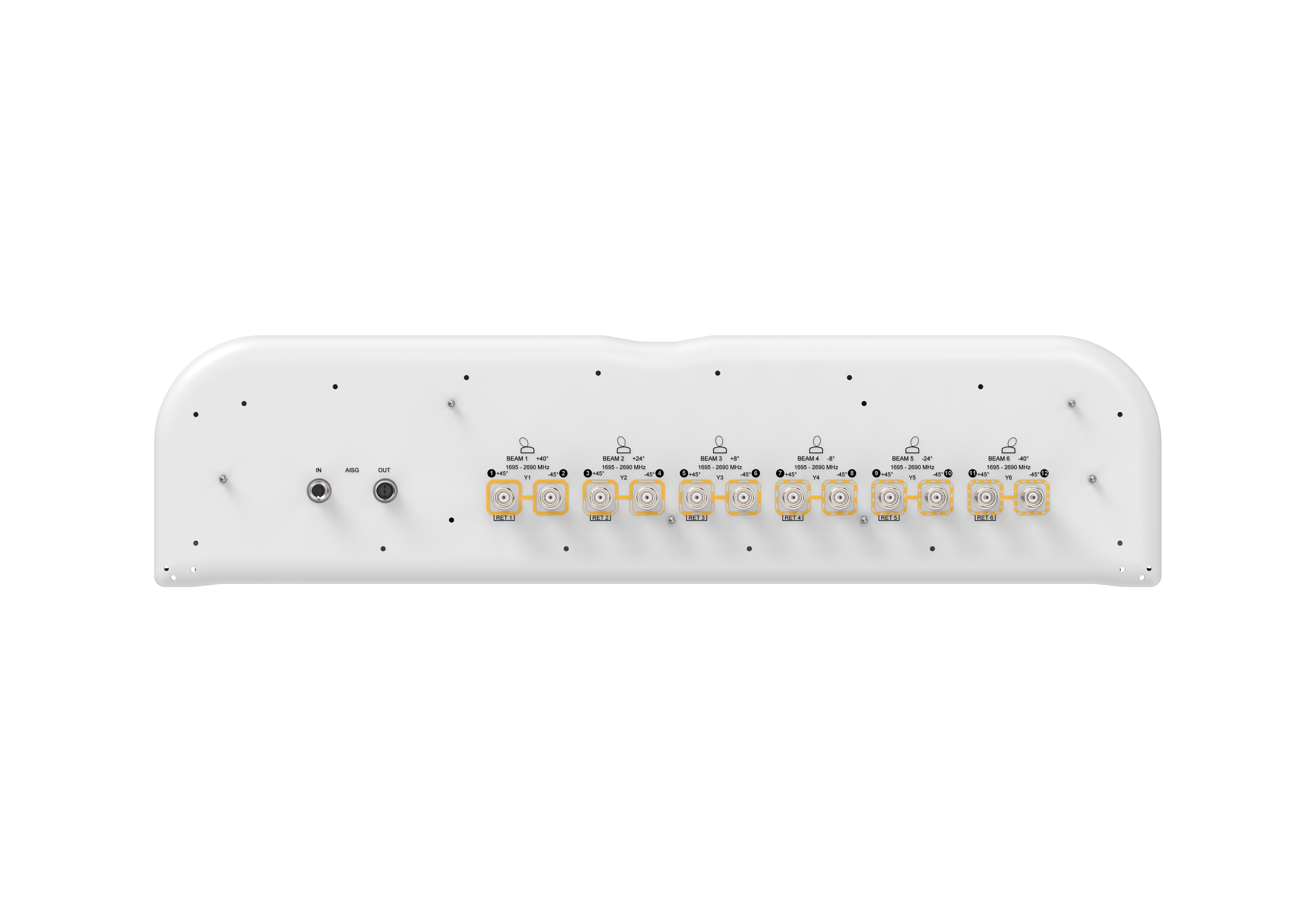

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical specifications
| Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | P1-P12 | P1-P12 | P1-P12 | P1-P12 | P1-P12 |
| Gain, dBi | 22.0 | 22.4 | 22.6 | 23.4 | 23.3 |
| Beam Centers, Horizontal, degrees | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 |
| Beam Crossover, dB | 7.00 | 8.00 | 9.00 | 10.00 | 13.00 |
| Beamwidth, Horizontal, degrees | 12 | 11 | 11 | 9 | 9 |
| Beamwidth, Vertical, degrees | 11.9 | 11.2 | 10.5 | 9.1 | 8.4 |
| Beam Tilt, degrees | 4–10 | 4–10 | 4–10 | 4–10 | 4–10 |
| USLS (First Lobe), dB | 11 | 10 | 10 | 12 | 11 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 19 | 19 | 19 | 19 | 18 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,116.0 N @ 150 km/h (250.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 341.0 N @ 150 km/h (76.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,116.0 N @ 150 km/h (250.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 561 mm | 22.087 in |
| Length, packed | 1166 mm | 45.906 in |
| Weight, gross | 65.5 kg | 144.403 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, total | 12 |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 900 mm | 35.433 in |
| Net Weight, antenna only | 43.8 kg | 96.562 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical specifications
| Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | P1-P12 | P1-P12 | P1-P12 | P1-P12 | P1-P12 |
| Gain, dBi | 22.0 | 22.4 | 22.6 | 23.4 | 23.3 |
| Beam Centers, Horizontal, degrees | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 |
| Beam Crossover, dB | 7.00 | 8.00 | 9.00 | 10.00 | 13.00 |
| Beamwidth, Horizontal, degrees | 12 | 11 | 11 | 9 | 9 |
| Beamwidth, Vertical, degrees | 11.9 | 11.2 | 10.5 | 9.1 | 8.4 |
| Beam Tilt, degrees | 4–10 | 4–10 | 4–10 | 4–10 | 4–10 |
| USLS (First Lobe), dB | 11 | 10 | 10 | 12 | 11 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 19 | 19 | 19 | 19 | 18 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,116.0 N @ 150 km/h (250.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 341.0 N @ 150 km/h (76.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,116.0 N @ 150 km/h (250.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 561 mm | 22.087 in |
| Length, packed | 1166 mm | 45.906 in |
| Weight, gross | 65.5 kg | 144.403 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
