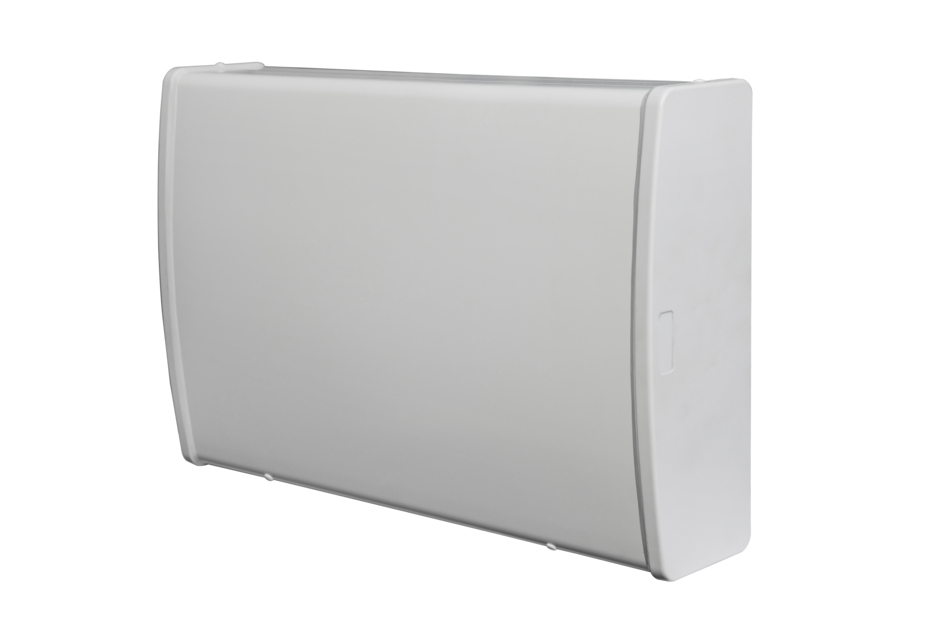

CMAX-HM4-30-I53
Base product: DIRECTIONAL-ANTENNAS
Cell-Max™ Low PIM Directional High Capacity Venue (4x4) MIMO Antenna, 1695–2700, 3300-4200MHz,
Specifications
Product classification
| Product Type | Over-the-head stadium antenna |
| Product Brand | Cell-Max™ |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 4x4 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 4 |
| Radome Material | PVC |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 326 mm | 12.835 in |
| Depth | 116 mm | 4.567 in |
| Length | 491 mm | 19.331 in |
Electrical specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 1695 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 1695–2200 | 2200–2700 | 3300–4200 |
| Gain, dBi | 10.8 | 11.5 | 10.3 |
| Beamwidth, Horizontal, degrees | 34 | 27 | 32 |
| Beamwidth, Vertical, degrees | 67 | 66 | 61 |
| Horizontal Sidelobe, dB | 20 | 18 | 17 |
| Front-to-Back Ratio at 180°, dB | 20 | 20 | 18 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 505 mm | 19.882 in |
| Width, packed | 200 mm | 7.874 in |
| Length, packed | 530 mm | 20.866 in |
| Included | Mounting bracket |
| Net Weight, with mounting kit | 6.7 kg | 14.771 lb |
| Packaging quantity | 1 |
| Weight, gross | 8.4 kg | 18.519 lb |
| Weight, net | 4.8 kg | 10.582 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Over-the-head stadium antenna |
| Product Brand | Cell-Max™ |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 4x4 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 4 |
| Radome Material | PVC |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 326 mm | 12.835 in |
| Depth | 116 mm | 4.567 in |
| Length | 491 mm | 19.331 in |
Electrical specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 1695 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 1695–2200 | 2200–2700 | 3300–4200 |
| Gain, dBi | 10.8 | 11.5 | 10.3 |
| Beamwidth, Horizontal, degrees | 34 | 27 | 32 |
| Beamwidth, Vertical, degrees | 67 | 66 | 61 |
| Horizontal Sidelobe, dB | 20 | 18 | 17 |
| Front-to-Back Ratio at 180°, dB | 20 | 20 | 18 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 505 mm | 19.882 in |
| Width, packed | 200 mm | 7.874 in |
| Length, packed | 530 mm | 20.866 in |
| Included | Mounting bracket |
| Net Weight, with mounting kit | 6.7 kg | 14.771 lb |
| Packaging quantity | 1 |
| Weight, gross | 8.4 kg | 18.519 lb |
| Weight, net | 4.8 kg | 10.582 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
